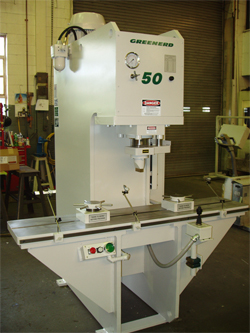

Showroom - 50 Ton Capacity Shaft Straightening Press
| Tons of Ram Force |
adjustable from 10 to 50 |
| Table Dimensions |
72" L-R x 15" F-B |
| Throat |
11" |
| Daylight (maximum open distance) |
18" |
| Stroke |
adjustable from 1" to maximum 12" |
| Floor to Table |
36" |
| Press Size |
72" L-R x 54" F-B x 110" Tall |
| Guiding System |
Ram Link |
| Pump Capacity |
18 GPM |
| Cylinder Bore |
7" |
| Ram Diameter |
5" |
| Ram Speed: Close, inches per minute |
211 |
| Ram Speed: Press, inches per minute |
91 |
| Ram Speed: Open, inches per minute |
220 |
| Maximum System Pressure |
2598 |
| Motor |
30 HP, 1800 RPM |
| Weight, approximate lbs |
8,000 |
Application:

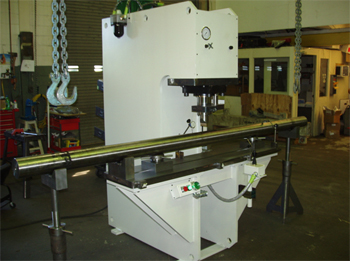

Shaft Straightening. The press was produced to handle shafts from 1” diameter through 6” diameter. The shafts required being straightened to prepare them for further machining.

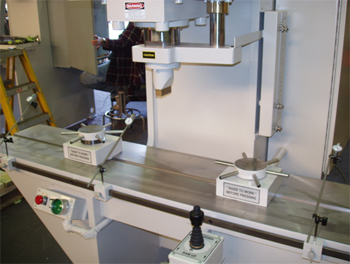

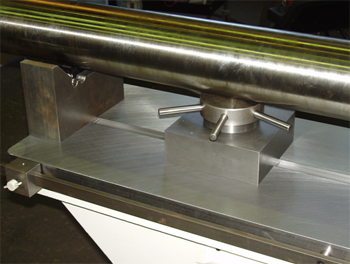

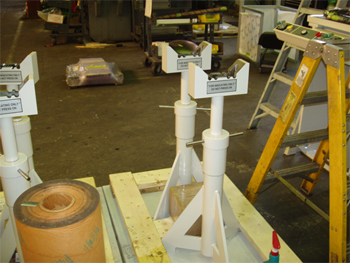

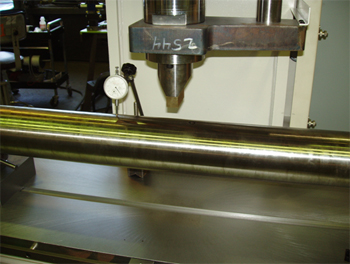

The press was supplied with Dial Indicators, Roller V-Blocks, Adjustable Height Anvils, Portable and Adjustable Height Shaft Supports and a Joystick control for controlling both pressure and depth on the Main Ram.
