4H-750

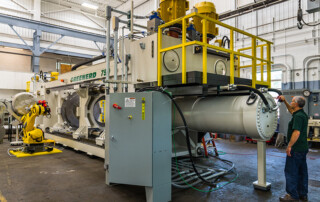

Horizontal deep draw press, fully integrated with two 6-Axis robots and auxiliary systems to produce a heavy-duty high pressure cylinder tank. The horizontal four-post gib-guided press has a 750-ton cylinder main ram with a 350-ton cushion. A 9 foot by 9 foot working area that allows for 6 foot diameter blanks to be processed. A maximum open distance of 15 feet accommodates a wide range of product lengths and tooling configurations.

Equipped with a powerful control system featuring user-friendly touch screen functions and set-up parameters. The programmed draws can vary the ram speed and tonnage throughout the stroke. Robots synchronize velocity with press movements to improve quality and maximize productivity. The production cell is controlled from a single workstation with programmed recipes enabling rapid product changeover.
